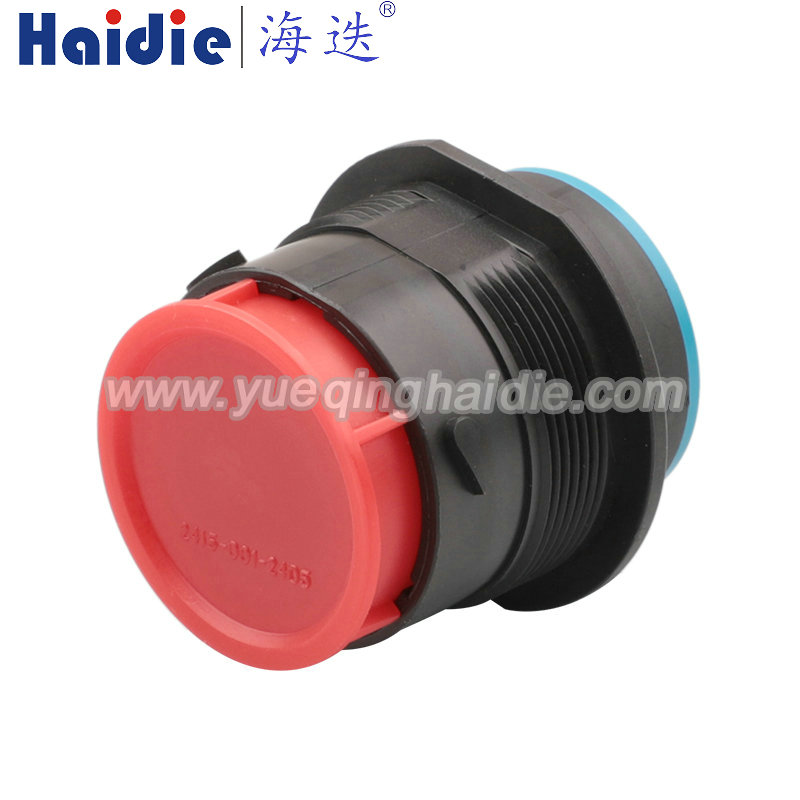

HDP24-24-23PE, 23 Pin Original connector, male or female,auto waterproof plug With Terminals
HDP24-24-23PE
Send Inquiry
Manufacturer | TE Connectivity Deutsch Connectors |
Series | HDP20 |
Part Status | Active |
Connector Type | Receptacle Housing |
Type | For Male Pins |
Number of Positions | 23 |
Shell Size - Insert | 24-23 |
Shell Size, MIL | - |
Contact Type | Crimp |
Contact Size | 16 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead - Front Side Nut |
Fastening Type | Bayonet Lock |
Orientation | Keyed |
Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
Shell Finish | - |
Housing Color | Black |
Ingress Protection | IP68 - Dust Tight, Waterproof |
Material Flammability Rating | UL94 V-1 |
Features | Dust Cap |
Shielding | Unshielded |
Note | Contacts Not Included; Jam Nut Not Included |
Includes | - |
Insert Material | Polyetherimide (PEI) |
Contact Shape | Circular |
Operating Temperature | -55°C ~ 125°C |
