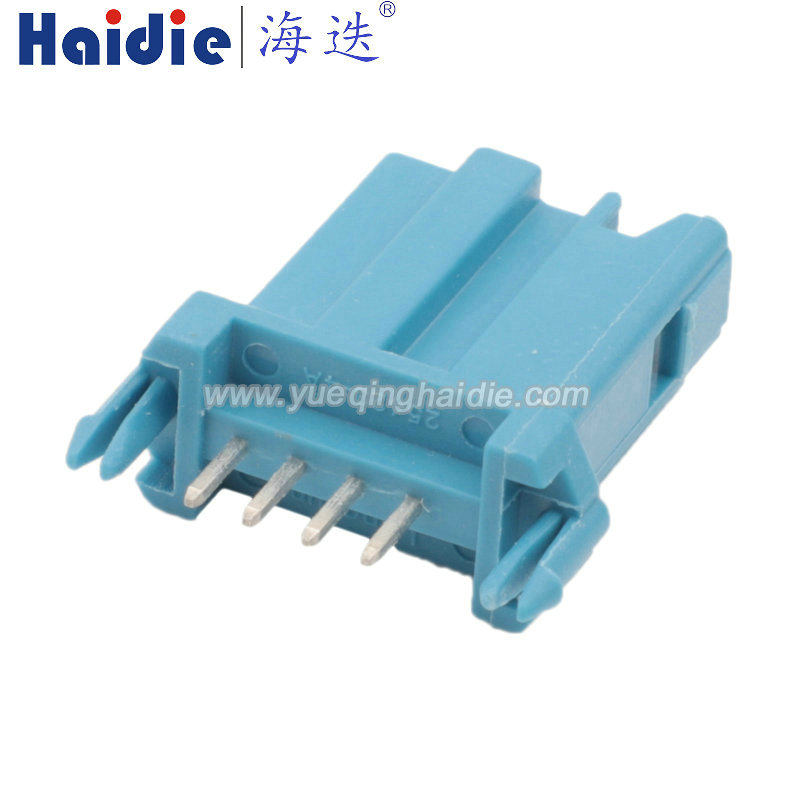

1379165-7 Connector Header Through Hole 4 position 0.100" (2.54mm)
1379165-7
Send Inquiry
Mfr | TE Connectivity AMP Connectors |
Series | Micro Quadlok |
Part Status | Active |
Connector Type | Header |
Contact Type | Male Pin |
Pitch - Mating | 0.100" (2.54mm) |
Number of Positions | 4 |
Number of Rows | 1 |
Row Spacing - Mating | - |
Number of Positions Loaded | All |
Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall |
Mounting Type | Through Hole |
Termination | Solder |
Fastening Type | Push-Pull |
Contact Length - Mating | 0.232" (5.90mm) |
Contact Length - Post | 0.150" (3.81mm) |
Overall Contact Length | - |
Insulation Height | - |
Contact Shape | Square |
Contact Finish - Mating | Tin |
Contact Finish Thickness - Mating | - |
Contact Finish - Post | - |
Contact Material | Copper Alloy |
Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
Features | Board Lock |
Operating Temperature | -40°C ~ 85°C |
Ingress Protection | - |
Material Flammability Rating | UL94 HB |
Insulation Color | Black |
Current Rating (Amps) | - |
Voltage Rating | 12V |
FAQ
- Q: Is small order less than 100pcs accept?
A: Yes, you can buy small order in our online store http://www.hdconnectorstore.com/ - Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products ?
A: Yes, please contact us on line or Email us, then we would send the catalogue. - Q: Do you have a price list include all connecors?
A: We only have few mainly products price list for your reference. For the others, please kindly send us your demand, then we would quote accordingly - Q: I can’t find the product on your catalogue,only have par no. or picture, will you search for
me?
A: Our catalogue shows most of our products, some new connectors, we didn't update, so please feel free to contact us with the part no. or picture. - Q: What about your delivery time?
A: We have a lot of products in stock, the delivery time would be within 3 working days If out of stock , we will check the delivery time for you. - Q: How to ship my order? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS. That’s Door to Door service.
For big packages, we will send them by Air or By sea, ensure the package safety - Q: What kind of payment do you accept?
A: T/T, PAYPAL or Western Uion - Q: Could I ask making a new mould?
A: Sure,please offer 2-5pcs samples for us design and produce for you - Q: How long to make a new mould?
A: 30-45 days depending on the samples' complexity.
